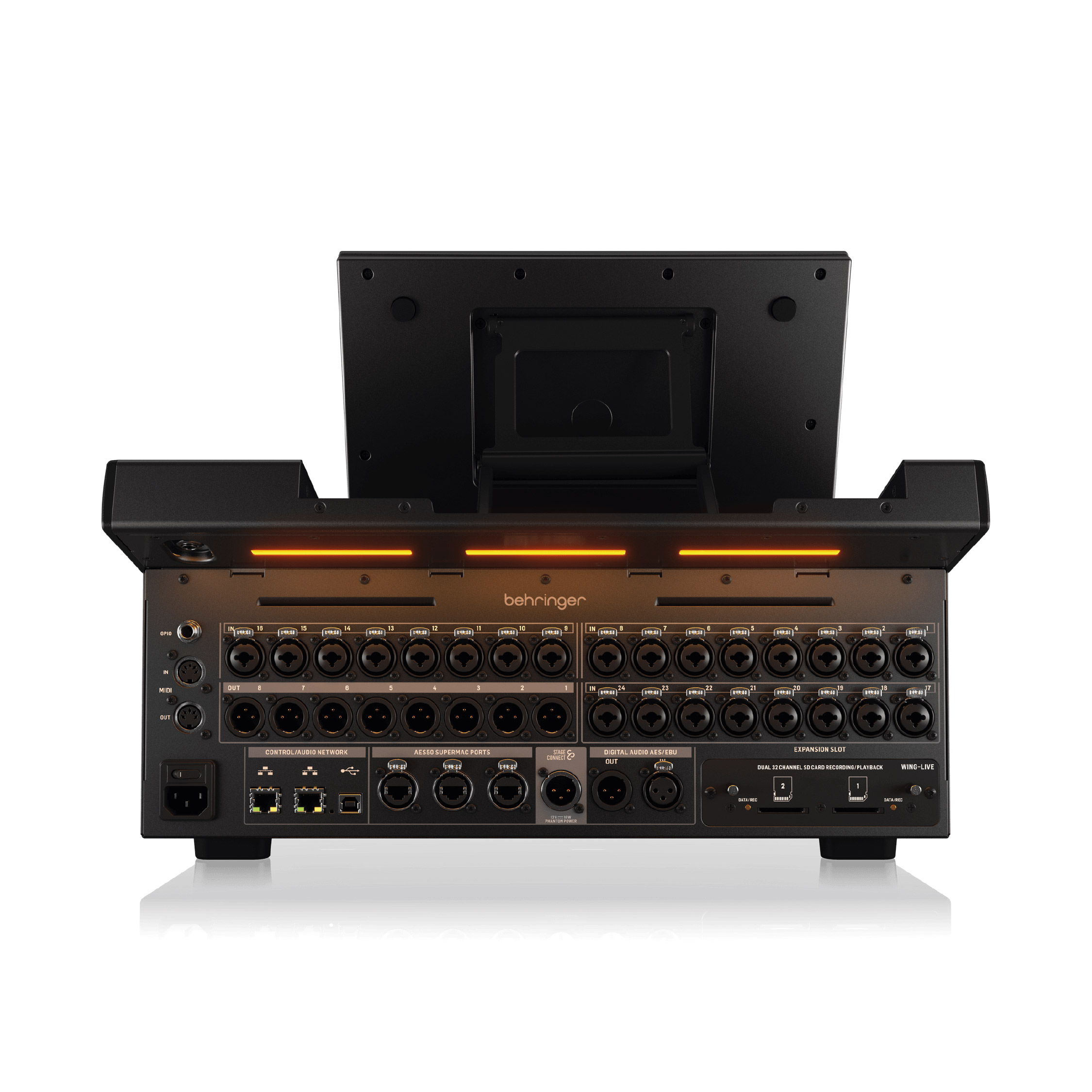

Behringer Wing Compact

El mezclador digital Behringer WING COMPACT es una mesa de mezclas digital de 48 canales y 28 buses, diseñada para ingeniería de sonido profesional. Con 24 previos Midas PRO y 8 salidas, garantiza una fidelidad de audio superior. Así mismo, los 13 faders motorizados, dispuestos en tres secciones configurables, ofrecen un control preciso, mientras que la pantalla táctil de 10″, con interfaz de usuario WING, garantiza una navegación sencilla. Con dos ranuras para tarjetas SD y una interfaz USB de 48 x 48 canales, el WING COMPACT es ideal para grabar en directo o utilizarlo en el estudio.
24 Midas PRO mic preamps and 8 outputs
provide industry-reference sound quality
13 motorized 100 mm faders
with powerful master fader section – and 20 Custom buttons
3 AES50 ports
for a total of 144 input and output signals on SuperMac CAT5 connections with ultra-low jitter and 6-sample latency
10.1 inch main display
with multi-touch screen and adjustable swivel
Unique “Sends on Fader”-Workflow
with dedicated color TFT-Display and dedicated hot-keys to 44 Masters – Buses, Mains, Matrices, DCA’s
Integrated USB Audio/MIDI
Interface for 48 audio channels in and out
Dual-SD card live recorder/player
with up to 64 tracks and markers for identifying song positions
Internal AoIP-module
can upgrade the Ethernet ports with optional 64 channel audio in and out to Audinate Dante and Waves SoundGrid networks
16 True-stereo effects processing engines
, with 80+ world-class algorithms
3 plug-in slots for Gate, Dynamics and EQ
included in every channel. All without reducing any additional effect processing headroom
4 main, 8 matrix and 16 aux stereo buses
, featuring dual inserts, 8-band parametric EQ’s, stereo imager and full dynamics processing, all in a single effect chain
40 Stereo Input Channels
with 5 variable plug-in processing slots each
8 Stereo Aux Input Channels
with single FX insert slot, expander/limiter and 4-band parametric EQ
8 Mute Groups and 8 DCA’s
for track grouping and consolidation
2 Ethernet ports with integrated switch
for networked remote control and optional AoIP through Waves SoundGrid and Dante®
Rear panel expansion slot
can host optional 64-channel audio interface and networking expansion cards, e.g. Dante, WSG, MADI …
StageConnect Host interface
for sharing of up to 32 channels in either direction via single XLR connection
2 channel GPIO
for controlling almost anything with WING
5-Pin MIDI in and out
for control and synchronization with external devices
DAW Remote Control
compatible with Mackie Control Universal (MCU) and presets for Cubase, Ableton Live, Logic X, Nuendo, ProTools, Reaper, Studio One
Offline editing and remote control
via WING-CoPilot, WING-Q and WING-Edit Softwares for Desktop and Mobile
19″ rack-mountable in 3 positions
